Product Description

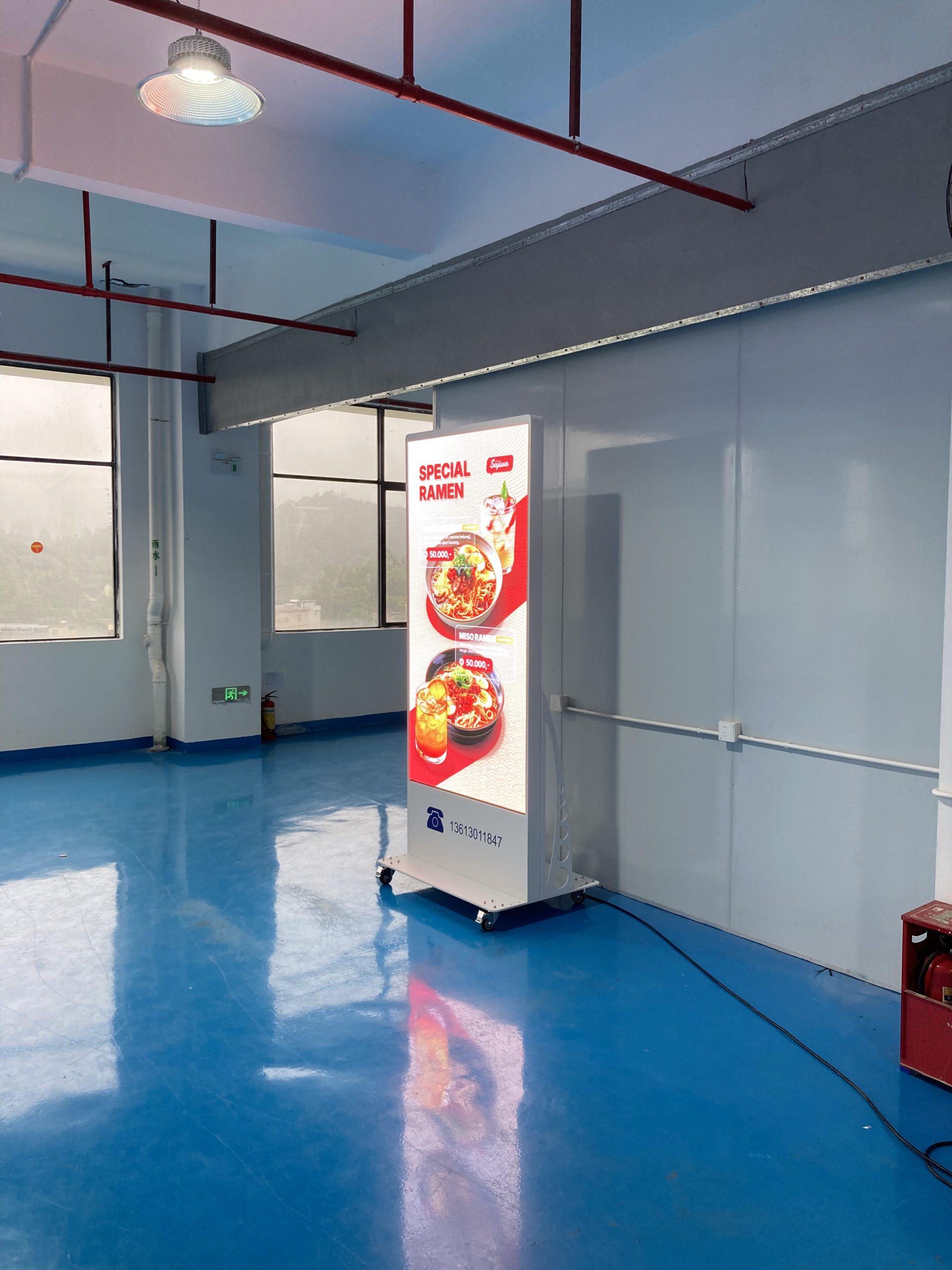

Haian outdoor totem LED displays utilize latest HOB technology, making them resistant to impacts, scratches, and static electricity. It allows for installation on busy sidewalks and commercial streets, directly showcasing advertisements to the public.
Freestanding design eliminates the need for a mounting base or bracket. Haian outdoor totem LED displays focus on the business value, minimizing installation costs for clients – truly plug-and-play.
Compared to LCD, LED technologies offer higher brightness and better color consistency, making commercial advertisements more attractive. Our outdoor totem LED displays not only boast high brightness but also automatic brightness adjustment, automatically increasing brightness during the day and decreasing it at night.
IP65 rated for all-outdoor use, they can operate in all weather conditions without any obstructions. These features enable outdoor totem LED displays to create value anywhere, serving any client.
Haian outdoor totem LED displays are not limited to single stores. Chain brands can deploy multiple outdoor totem LED displays and manage them uniformly for advertising updates. This model has proven efficient for many brands and is widely used in DOOH displays.
Regarding the cabinet appearance, Haian’s team supports and provides clients with a variety of designs free of charge. Typically, a base is included to ensure optimal alignment between the LED screen and pedestrian visibility. Clients can have their own ideas and request Haian to realize these designs.
Generally, the LED screen size can be 640mm wide x 1080mm high. However, this is not absolute. Haian’s outdoor totem LED display is based on the splicing of 320x180mm LED modules, so the size can be varied to achieve the best combination of advertising display and budget.
We generally consider 2.5mm and 4mm to be the most suitable pixel pitches, as they can efficiently achieve clients’ advertising goals. However, Haian’s outdoor totem LED display is constantly evolving. We seek greater client recognition and aim to help a wider range of stores achieve their business objectives.

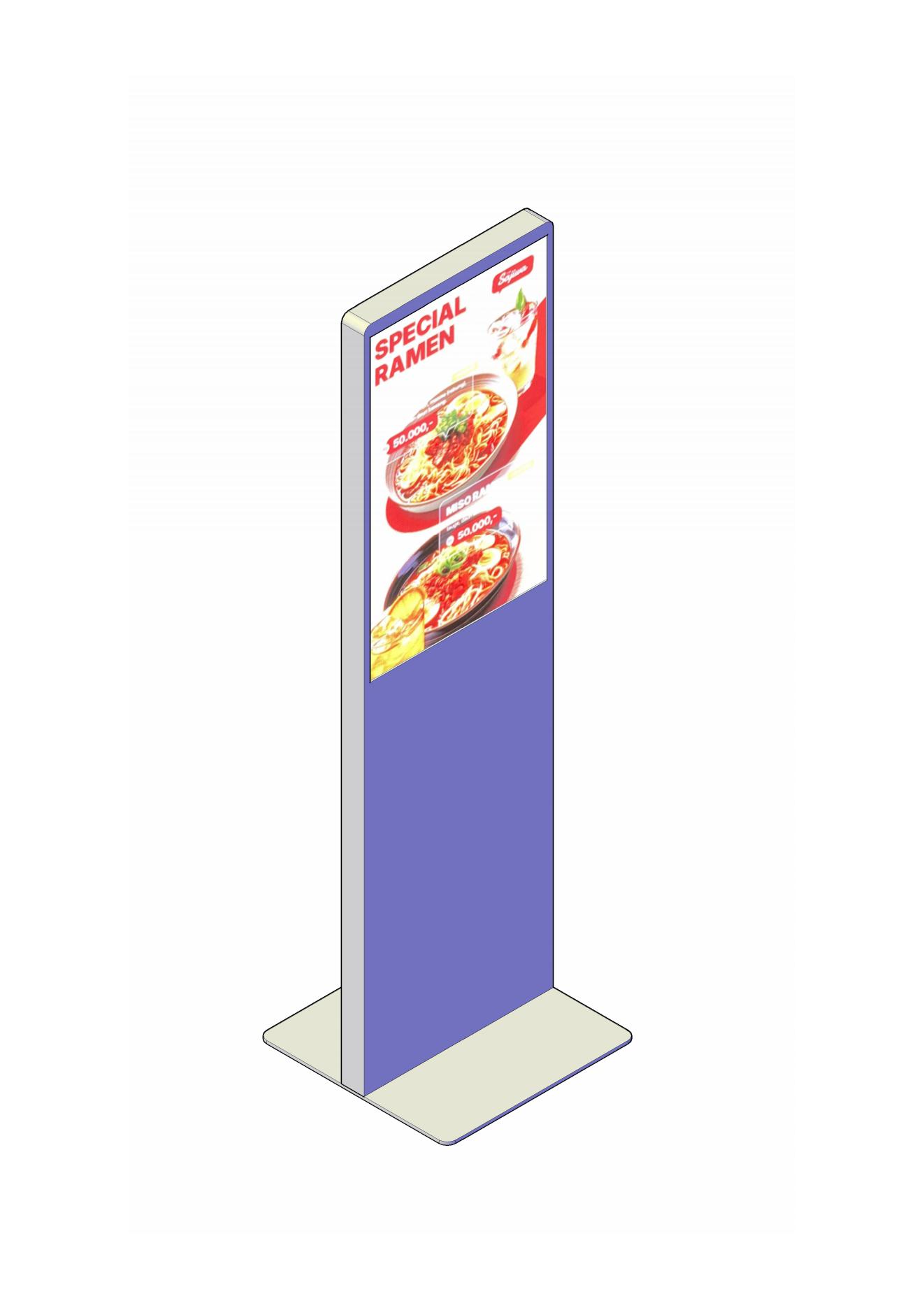

Different designs
Haian’s technical team is capable and happy to design different styles for clients to help them achieve the ultimate business goals.
Specifications
| Product Name | Outdoor Totem LED Display | |
|---|---|---|
| Pixel Pitch | 2.5mm | 4.0mm |
| Pixel Configration | SMD1415 | SMD1921 |
| LED Module Size | 320mm x 180mm | 320mm x 180mm |
| Screen Size | 640mm x 1080mm | 640mm x 1080mm |
| Brightness | 6,000 nits | 6,000 nits |
| Best Viewing Distance | 2m ~ 10m | 3m ~ 15m |
| Gray Scale | ≥ 15bit | ≥ 15bit |
| Refresh Rate | ≥3,840Hz | ≥3,840Hz |
| Input Voltage | AC220/110V±10% | AC220/110V±10% |
| Lifetime | 100,000 hours | 100,000 hours |
| Protection Rate | IP65 | IP65 |
| Operating Temperature | ﹣20 ~﹢50 ℃ | ﹣20 ~﹢50 ℃ |
| Operating Humidity | 10% ~ 90% | 10% ~ 90% |
| Maintenance | Front Service | Front Service |
| HOB (Protect LEDs From) | Impact, Water, Dust, Static, UV | |
| Cooling Method | Fan Cooling | Fan Cooling |
