Car Parking LED Signs

Car parking LED sign is a variable message sign, and it comes with a small sign in cabinet.

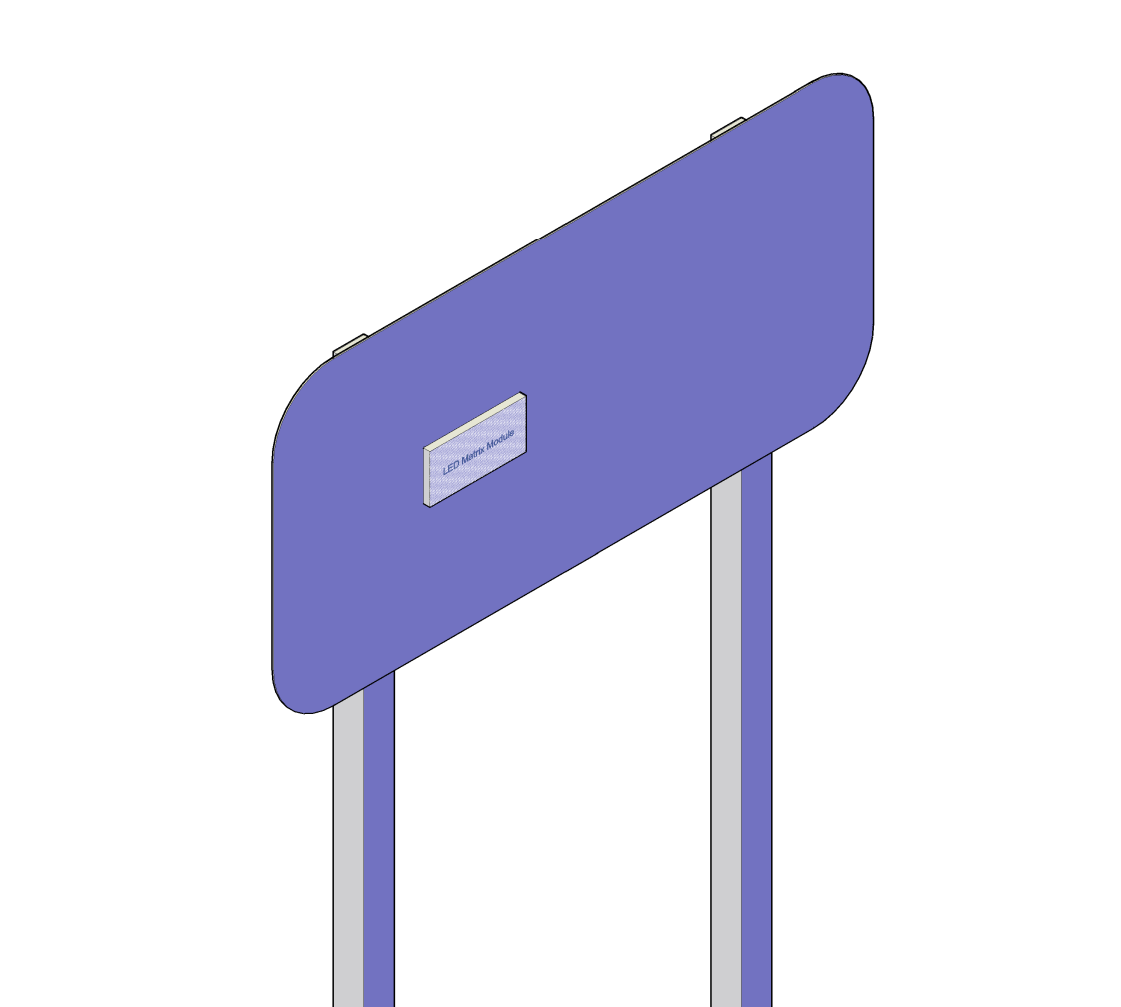

Car parking LED signs are mounted on static signs. Static signs display fixed information, while car parking LED signs display variable information.

It is very important that car parking LED signs are front serviceable and that power supply and controller are mounted inside the cabinet.

The reasons.

When cabinet in bolted to a back wall or is inserted into a cut out on a static sign artwork, the LED module can be unlocked and removed by a technician from the front.

This way if there is a problem with the car parking LED sign, the technician can place a ladder, claim on it, unlock and remove the LED module and immediately access to all components from the front.

The LED module will be hold by a wire rope so the technician does not have to hold any components in his hand, does not have to worry about dropping any part down on the floor.

If the technician cannot repair the car parking LED sign, he simply replaces the whole cabinet with a spare cabinet that already has all the component in place, so it is easy and fast changeover and a short down time of the car parking LED sign.

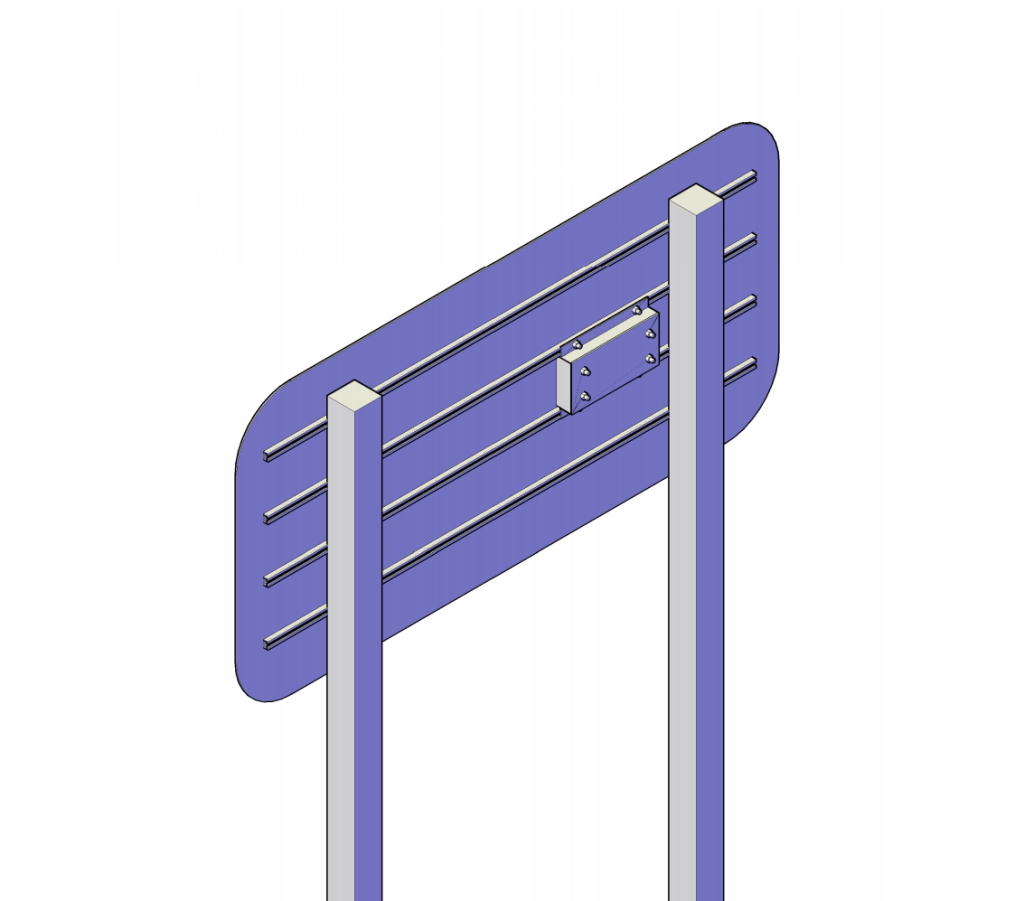

The back section of the cabinet protects the power supply and controller inside from the effects of rain and enables the complete cabinet to be easily bolted either to the holding plate or to the back wall.

It is important that the LED module protrudes to the front to enable access to the installing and maintenance.

The photos showed how we presently assembly this type of car parking LED sign and how it is accessed by technician on site.

We offer a range of colors for the text, which means we could now offer car parking LED signs to display numbers of parking spaces for disabled drivers in blue color and display other numbers in white, when high contrast is required.

5mm or 10mm pixel pitch will be great as most of these signs are used for display of vacancy numbers in a car park.

If you are asked to provide a small sign where a displayed text can be scrolled, possibly you could place 2 LED panels side by side to display the scrolling text.

There will be a protocol on how the messages are structured.
Eg.
– How do we send the Time and Date display?
– How do we send command to change LED colour from say, Green to Red?
– How do we display number 223 or FULL?

Controller: Huidu
